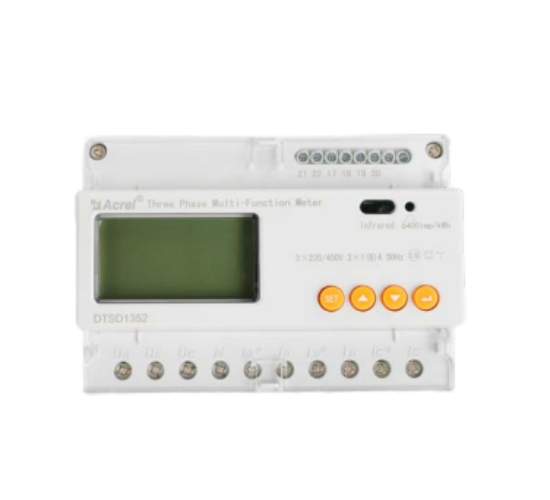

Sungrow Smart Meter Acrel 6A
The Sungrow Smart Meter Acrel 6A is an advanced energy monitoring device designed for residential and commercial solar systems. It accurately measures voltage, current, and power consumption, providing real-time data for efficient energy management. With high precision and reliable performance, it enables seamless integration with Sungrow inverters for enhanced system monitoring and optimization. Its compact design ensures easy installation and long-term durability.
Specifications
- Model: Acrel DTSD1352‑C/1 (6)A Smart Meter
- Meter Type: Three Phase Smart Energy Meter for solar/grid monitoring
- Nominal Voltage: 230 Vac / 400 Vac
- Input Voltage Range: 57.7 Vac – 268 Vac / 100 Vac – 464 Vac (depending on configuration)
- Rated Current: 3×1 (6) A via external CTs
- Frequency: 50 Hz / 60 Hz (45 – 65 Hz range)
- Accuracy Class: Class 0.5 (active energy)
- Communication: RS485 (Modbus‑RTU)
- Display: 8‑digit LCD
- Power Consumption: < 2 W (approx. < 10 VA)
- Measured Parameters: Voltage, Current, Power (active/reactive/apparent), Power Factor, Energy, Frequency, and other electrical parameters
- Environmental Conditions: Operating temperature –25 °C to 55 °C; Relative humidity 0–95 % (non‑condensing)
- Protection Level: IP20
- Installation: 35 mm DIN‑rail mount
- Dimensions: 126 × 91 × 74 mm
- Weight: ~0.35 kg.
- Additional Features: Requires external CTs for current measurement; multi‑tariff and optional harmonic/DI/DO functions depending on model variation
Sungrow Smart Meter Acrel 6A – Accurate & Reliable Energy Monitoring Solution
The Sungrow Smart Meter Acrel 6A is a high-precision energy monitoring device designed for residential, commercial, and industrial solar systems. Engineered for reliability and accuracy, it provides real-time measurement of electricity consumption and generation, enabling users to monitor and manage energy usage efficiently.
With a measurement current of up to 6A, this smart meter supports detailed tracking of voltage, current, power, and energy data, helping optimize energy management and detect anomalies early. Its compact design allows easy installation in switchboards or electrical panels, making it a versatile choice for modern solar and grid-tied setups.
The meter is fully compatible with Sungrow inverters and other smart energy management systems, ensuring seamless integration for monitoring and reporting. It supports remote data access through wired or wireless communication protocols, giving users full control over their energy consumption patterns.
SUNSOLAR – Pakistan’s Trusted Solar Company
At SUNSOLAR, we offer 100% original Sungrow products along with expert installation and support. Our team ensures precise deployment and system integration, helping you achieve accurate monitoring, energy optimization, and better cost management.
Why Buy from SUNSOLAR?
✅ 100% Original Sungrow Products
✅ Professional Installation & System Integration
✅ Real-Time Energy Monitoring & Reporting
✅ Local Support & Warranty Handling
✅ Competitive Pricing with Premium Service
Order Now – Sungrow Smart Meter Acrel 6A
Enhance your solar or electrical system with accurate and reliable energy monitoring using the Sungrow Smart Meter Acrel 6A. Contact SUNSOLAR today to gain full control over your energy usage and optimize your efficiency.
