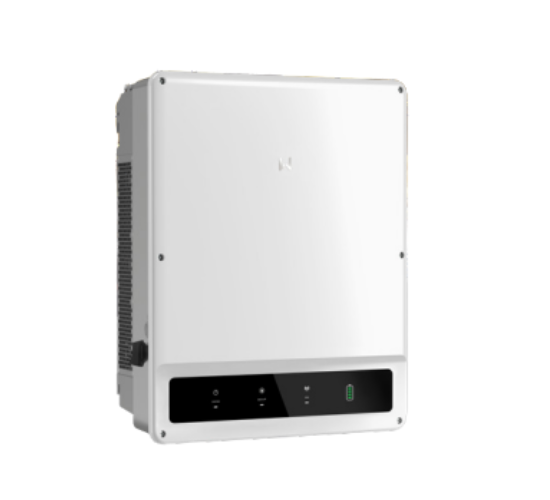

GoodWe ET HV Series 30kW Hybrid Inverter (3 Phase)(5Y)

The GoodWe ET HV Series 30kW Hybrid Inverter is a versatile solar inverter designed for medium to large residential and commercial systems, integrating solar power, battery storage, and grid supply in one unit. It features advanced MPPT technology to optimize solar energy harvesting and maintain high efficiency under varying conditions. With efficiency up to around 97–98%, it delivers reliable energy conversion and seamless backup during power outages. Its robust design with intelligent monitoring and control ensures long‑term performance and easy system management.

Specifications

  • Model: GoodWe ET HV Series 30kW Hybrid Inverter
  • Inverter Type: Hybrid (Solar + Grid + Battery), Three Phase
  • Rated Power: 30,000W
  • Efficiency: Up to 98.0%
  • Phase Type: Three Phase
  • MPPT Input: Up to 3 MPPTs
  • Max DC Input Voltage: 1,000V
  • Input Voltage Range: 200V – 800V
  • Output Voltage: 380V / 400V, Three Phase
  • Max DC Input Current: 15A per string
  • Max AC Grid Output Current: ~49.8A (at 400V)
  • Battery Voltage Range: 200 – 800V
  • Max Continuous Charging / Discharging Current: 50 A×2 / 50 A×2 (typical for 30kW)
  • Communication: RS485, WiFi (monitoring support)
  • Protection Level: IP65
  • Features: peak shaving, export power control, integrated dry contact for external loads, Type II SPD on DC side
  • Dimensions: varies by model but generally similar footprint for the series
  • Weight: approximately 60 kg
  • Warranty: 5–10 years depending on region

GoodWe ET HV Series 30kW Hybrid Inverter – Advanced & High-Performance Energy Management Solution

The GoodWe ET HV Series 30kW Hybrid Inverter is a premium three-phase solution designed for large residential, commercial, and industrial solar systems. Built with cutting-edge hybrid technology, it seamlessly integrates solar power generation, battery storage, and grid supply into one intelligent system, ensuring maximum energy efficiency, flexibility, and reliability.

With an impressive efficiency of up to 98%, this inverter delivers optimal energy conversion while minimizing losses. It supports high-voltage (HV) lithium battery systems, allowing users to store excess solar energy for use during nighttime or power outages. This ensures uninterrupted power supply and greater energy independence, making it ideal for areas with frequent load shedding or unstable grid conditions.

Equipped with dual MPPT trackers, the GoodWe ET HV Series 30kW Hybrid Inverter maximizes solar energy harvesting even when panels are installed in multiple orientations or affected by partial shading. Its wide input voltage range and high DC input capacity enable efficient handling of large solar arrays, making it suitable for high-demand applications.

The inverter features advanced energy management capabilities, allowing users to prioritize energy usage between solar, battery, and grid. It also supports peak shaving and load management, helping reduce electricity bills and optimize overall system performance. In addition, its UPS-level switching ensures seamless transition during power outages, providing critical backup for essential loads.

SUNSOLAR – Pakistan’s Trusted Solar Company

At SUNSOLAR, we provide 100% original GoodWe inverters along with professional installation and tailored solar solutions. Our experienced team handles everything from system design to net metering approvals, ensuring a hassle-free experience and maximum system performance.

Why Buy from SUNSOLAR?

100% Original GoodWe Products
✅ Expert Installation & Customized System Design
✅ Net Metering Assistance
✅ Reliable After-Sales Support & Warranty Handling
✅ Competitive Pricing with Premium Service

Order Now – GoodWe ET HV Series 30kW Hybrid Inverter

Upgrade to a smart and efficient energy solution with the GoodWe ET HV Series 30kW Hybrid Inverter. Contact SUNSOLAR today and take control of your energy with reliable, clean solar power.
