₨930,000.00

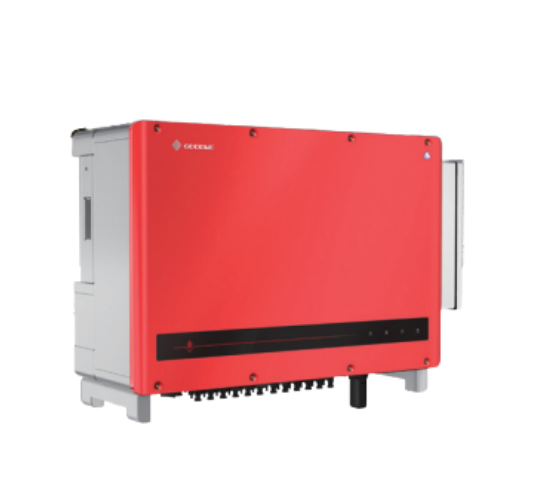

GoodWe 100kW OnGrid Inverter (5Y)
The GoodWe 100kW On-Grid Inverter is a high-capacity solar inverter designed for large commercial and industrial systems, efficiently converting solar energy for on-site use and grid export. It features multiple MPPTs to maximize energy harvesting and maintain high performance under varying conditions. With efficiency up to around 98–98.8%, it ensures stable and reliable power output. Its robust design with advanced protection features and smart monitoring capabilities supports long-term durability and efficient system management.
Specifications
- Model: GoodWe 100kW Ongrid Inverter (GW100K-GT / GW100K-HT)
- Inverter Type: On-Grid (Solar + Grid), Three Phase
- Rated Power: 100,000W
- Maximum Efficiency: Up to 98.8%
- European Efficiency: Approx. 98.3% – 98.4%
- Phase Type: Three Phase
- MPPT Input: 8–10 MPPT (model dependent)
- Strings per MPPT: 2
- Max DC Input Voltage: 1,100V
- MPPT Voltage Range: 180V – 1,000V
- Start-up Voltage: 200V
- Max Input Current per MPPT: up to 42A
- Max Short Circuit Current per MPPT: up to 52.5A
- Output Voltage: 220V / 380V, 230V / 400V, Three Phase
- Output Frequency: 50Hz / 60Hz
- Max Output Current: approx. 167A
- Max Apparent Power: 110 kVA
- Cooling Method: Smart Fan Cooling
- Communication: RS485, WiFi, LAN, optional 4G / PLC monitoring
- Protection Level: IP66 (Dust & Water Resistant)
- Protection Features: Type II SPD (AC & DC), anti-islanding, AFCI (optional)
- Operating Temperature Range: approx. −30°C to +60°C
- Dimensions: approx. 930 × 650 × 300 mm
- Weight: approx. 85 kg
- Warranty: 5 years
GoodWe 100kW Ongrid Inverter – Reliable & Utility-Scale High-Efficiency Solution
The GoodWe 100kW Ongrid Inverter is a robust three-phase solution engineered for large-scale commercial and industrial solar power systems. Designed with cutting-edge technology and superior build quality, it ensures maximum energy generation, operational stability, and long-term reliability. This inverter is an ideal choice for factories, warehouses, commercial complexes, and utility-scale solar installations aiming to optimize energy production and significantly reduce electricity costs.
With a maximum efficiency of up to 98.8%, the inverter delivers excellent energy conversion performance with minimal losses. Its advanced multi-MPPT design enables efficient solar harvesting from multiple panel arrays installed at different angles or affected by partial shading, ensuring consistent and optimized power output throughout the day.
The GoodWe 100kW Ongrid Inverter supports wide input voltage ranges and high DC capacity, making it suitable for large solar arrays and complex system designs. It also features intelligent monitoring capabilities, allowing users to track system performance in real time and quickly identify any operational issues for enhanced maintenance and control.
Fully compatible with net metering systems, the GoodWe 100kW inverter is a perfect solution for businesses and industries looking to export excess energy to the grid and maximize return on investment. Its durable design and advanced safety features ensure smooth and secure operation even in demanding environmental conditions.
SUNSOLAR – Pakistan’s Trusted Solar Company
At SUNSOLAR, we provide 100% original GoodWe inverters along with expert installation and tailored solar energy solutions. Our experienced team manages everything from system design to net metering approval, ensuring a seamless transition to solar energy with maximum efficiency and savings.
Why Buy from SUNSOLAR?
✅ 100% Original GoodWe Products
✅ Professional Installation & System Design
✅ Net Metering Assistance
✅ Local Support & Warranty Handling
✅ Competitive Pricing with Premium Service
Order Now – GoodWe 100kW Ongrid Inverter
Upgrade your energy system with the powerful and efficient GoodWe 100kW Ongrid Inverter. Contact SUNSOLAR today and move towards a smarter, cost-effective, and sustainable energy future.
