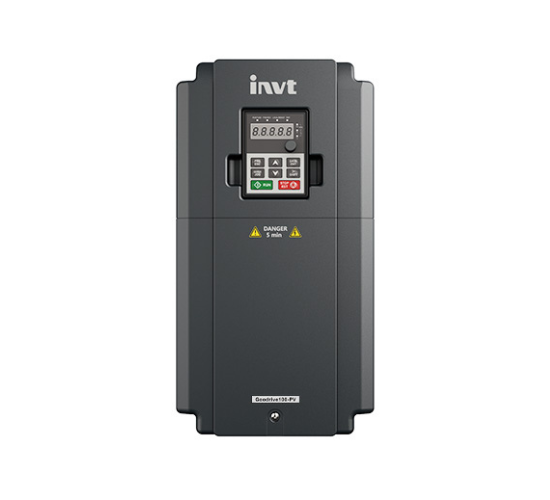

INVT GD100 11kW VFD Orignal

The INVT GD100 11kW Solar VFD (Original) is a durable, MPPT-based variable frequency drive designed to power 3-phase 15HP motors using solar energy. With over 99% MPPT efficiency, intelligent protections, and reliable off-grid performance, it is ideal for agricultural water pumping, tube wells, and solar irrigation systems in Pakistan.

Specifications

  • Brand: INVT
  • Model: GD100-PV Series
  • Drive Type: Solar VFD with MPPT
  • Rated Power: 11kW (15HP)
  • Input Voltage (DC): 350V – 800V DC
  • Input Voltage (AC): 3-Phase, 380V ±15%
  • Output Voltage: 3-Phase, 0~380V Adjustable
  • Output Frequency: 0 – 400Hz
  • MPPT Efficiency: >99%
  • Motor Compatibility: Induction & Permanent Magnet Motors
  • Cooling Type: Intelligent Fan Cooling
  • Control Panel: LED Display with Control Keypad
  • Communication: RS485 (Modbus RTU Supported)
  • IP Rating: IP20
  • Operating Temperature: -10°C to +50°C
  • Dimensions: Approx. 395 x 247 x 206 mm
  • Weight: ~10.5 kg
  • Warranty: 1-Year Official Manufacturer Warranty

INVT GD100 11kW MPPT Solar VFD – Premium 15HP Controller for Agricultural Water Pumping

The INVT GD100 11kW solar drive is a high-efficiency variable frequency drive tailored for 3-phase 15HP motor control using solar power. With built-in MPPT technology, the GD100 ensures that your solar array operates at its maximum power point – boosting energy conversion and water output.

Designed for farms, tube wells, and off-grid irrigation, the GD100 delivers robust protection for motor systems, extending their lifespan. It supports induction and PMSM motors and operates efficiently even with fluctuating sunlight, making it reliable for all-day water supply.

This VFD provides a cost-effective, diesel-free solution for farmers in remote areas, cutting operational expenses and supporting sustainable agriculture.

Why Choose INVT GD100 11kW Solar VFD?

INVT is a globally trusted brand known for reliable industrial drives and automation. The GD100 11kW model offers smart MPPT performance, durability, and flexible solar integration—perfect for Pakistan’s rural applications.

Available at SUNSOLAR – Pakistan’s Solar Pumping Expert

SUNSOLAR offers authentic INVT GD100 11kW Solar VFDs with complete support for solar sizing, motor pairing, installation, and technical service.

Why Buy from SUNSOLAR?

✔ 100% Original INVT Products
✔ Competitive Pricing & Stock Availability
✔ Agricultural Pump Design & Sizing Support
✔ Installation Assistance & On-Site Services
✔ Dedicated Warranty & After-Sales Help

Order INVT GD100 11kW Solar VFD Today!

Buy INVT GD100 11kW Solar VFD for 15HP agricultural water pumps. MPPT drive, motor protection, solar-powered. Available at SUNSOLAR Pakistan with full support.
