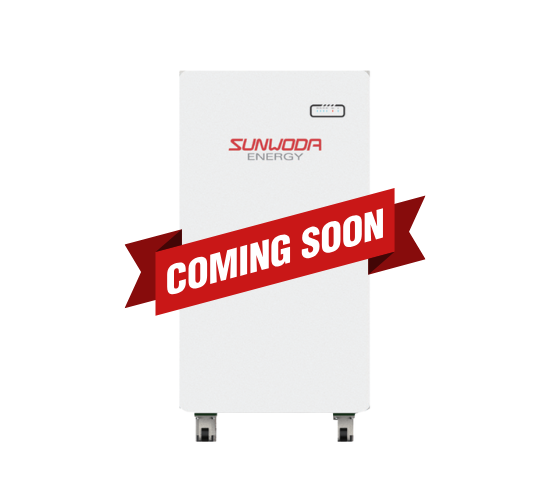

Sunwoda Atrix Max 14.3kWh Battery

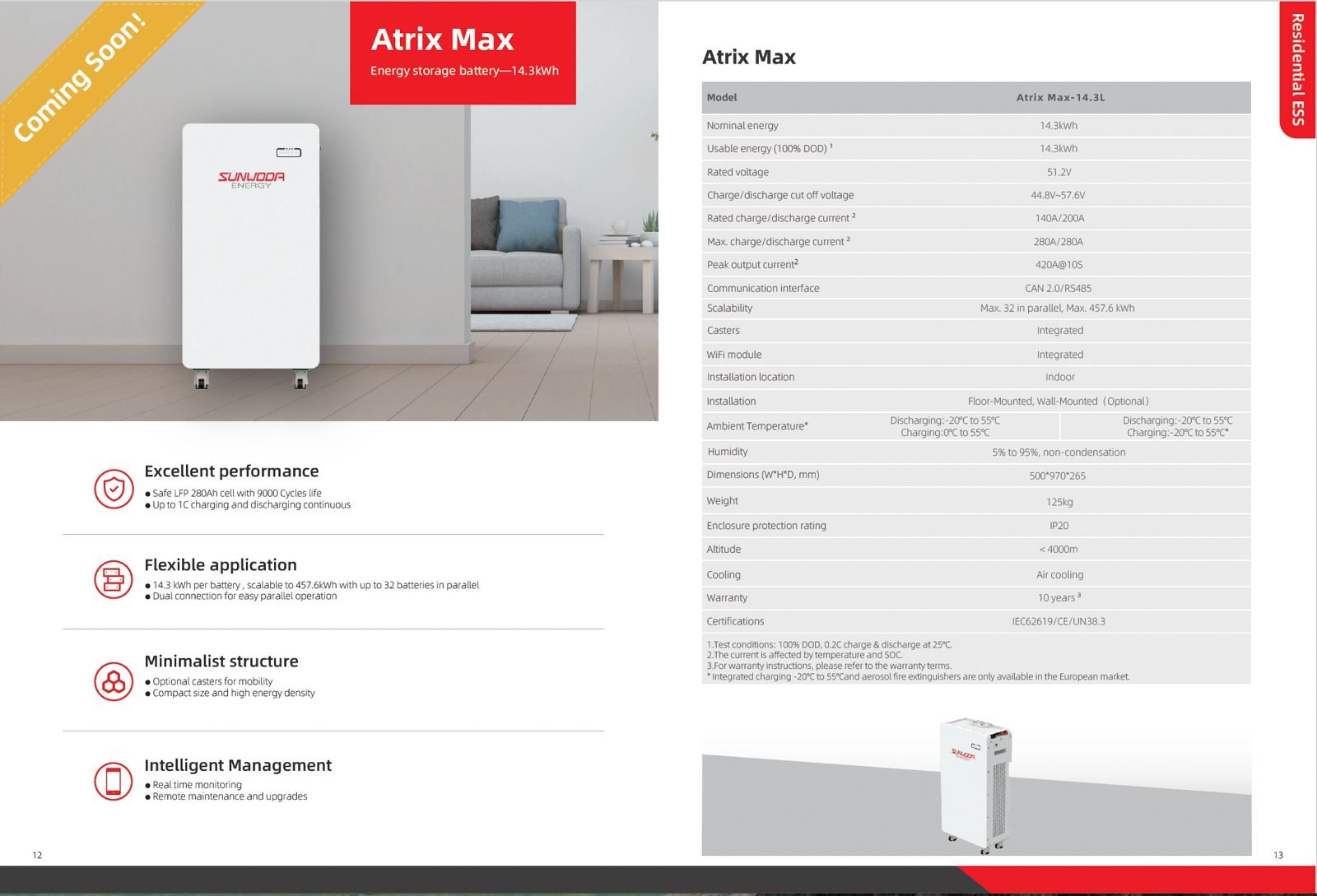

Specifications
- Model: Atrix Max-14.3L
- Battery Type: Lithium Iron Phosphate (LiFePO₄)
- Nominal Energy Capacity: 14.3 kWh
- Usable Energy (100% DoD): 14.3 kWh
- Rated Voltage: 51.2 V
- Operating Voltage Range: 44.8V – 57.6V
- Rated Charge / Discharge Current: 140A / 200A
- Maximum Charge / Discharge Current: 280A / 280A
- Peak Output Current: 420A @ 10s
- Depth of Discharge (DoD): 100%
- Cycle Life: Up to 9000 Cycles
- Communication: CAN 2.0 / RS485
- Scalability: Up to 32 Batteries in Parallel (Max 457.6 kWh)
- Installation: Floor-Mounted / Wall-Mounted (Optional)
- Cooling: Air Cooling
- Protection Level: IP20 (Indoor Use)
- Dimensions (W×H×D): 500 × 970 × 265 mm
- Weight: 125 kg
- Warranty: 10 Years
- Certifications: IEC62619 / CE / UN38.3
Sunwoda Atrix Max 14.3kWh Battery – True 1C Rated High-Power
The Sunwoda Atrix Max 14.3kWh stands out in the market because it is a true 1C rated battery, meaning it can safely charge and discharge at full capacity without performance loss.
Most lithium batteries are 0.5C rated, but this battery delivers double the power, making it perfect for:
-
Heavy load systems
-
High surge requirements
-
Fast charging & discharging
-
Commercial & high-end residential setups
With 9000 cycles life, intelligent BMS, real-time monitoring, and parallel expansion up to 457.6kWh, this battery is built for long-term, high-performance energy storage.
Why Choose Sunwoda Atrix Max 14.3kWh?
✔ Only 14.3kWh battery in its class with true 1C rating
✔ High power output for heavy & surge loads
✔ 100% usable capacity (Full DoD)
✔ Up to 9000 cycles for extra-long life
✔ Expandable up to 32 batteries in parallel
✔ Intelligent monitoring & remote management
✔ Premium-grade LiFePO₄ safety technology
SUNSOLAR – Your Trusted Solar Partner in Lahore
At SUNSOLAR, we provide original Sunwoda lithium batteries, expert system design, and professional installation services. The Sunwoda Atrix Max 14.3kWh Battery is the ideal choice for customers who demand high power, fast performance, and premium reliability.
Why Buy from SUNSOLAR?
✔ 100% Original Sunwoda Lithium Batteries
✔ Competitive Prices with Authentic Warranty
✔ Customized Solar & Battery System Design
✔ Professional Installation & After-Sales Support
