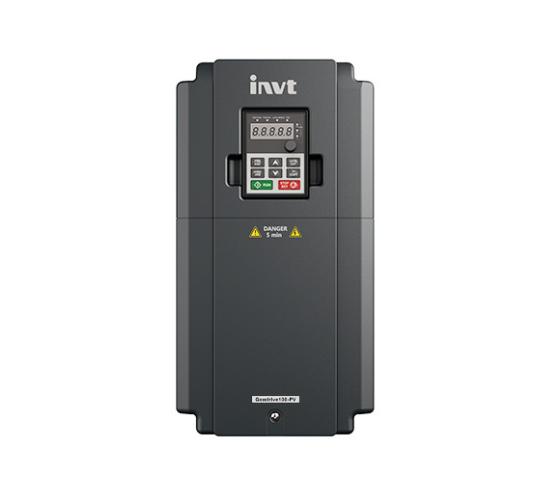

INVT GD100 37kW VFD Orignal

The INVT GD100 37kW MPPT Solar VFD (Original) is a robust and intelligent drive system designed to operate 50HP water pumps directly from solar panels. With advanced MPPT technology, dual input modes, and built-in protection features, it’s an ideal choice for agricultural irrigation, deep bore pumps, and industrial applications across Pakistan.

Specifications

  • Brand: INVT
  • Model: GD100-PV Series
  • Drive Type: MPPT Solar VFD
  • Rated Power: 37kW (50HP)
  • Input Voltage Range (DC): 350V – 800V DC
  • AC Output Voltage: 3-Phase 0 – 380V (Adjustable)
  • Output Frequency: 0 – 400Hz
  • Motor Compatibility: Induction Motors, PMSM
  • MPPT Efficiency: >99%
  • Dual Input: Solar Only or Solar + Grid (WAPDA / Generator)
  • Cooling Method: Intelligent Fan Cooling
  • Control Panel: Digital LED Display with Keypad
  • Communication: RS485 (Modbus RTU)
  • IP Rating: IP20
  • Dimensions: Approx. 665 × 375 × 265 mm
  • Weight: ~28 kg
  • Operating Temp Range: -10°C to +50°C
  • Warranty: 1-Year Manufacturer Warranty

INVT GD100 37kW VFD – 50HP MPPT Solar Drive for Large Pumping Systems

The INVT GD100 37kW Solar VFD is engineered for high-capacity solar water pumping applications in agriculture, industry, and commercial sectors. With its built-in MPPT algorithm, it tracks sunlight in real-time for maximum energy harvesting and smooth pump operation.

This VFD can drive large three-phase motors with reliable performance and minimal maintenance. Whether you’re powering deep well submersibles or surface pumps, the GD100 ensures efficiency and durability. Its dual input capability enables grid or generator fallback during low sunlight conditions, providing uninterrupted operation.

Why Choose INVT GD100 37kW MPPT Solar VFD?

INVT is a globally trusted brand offering powerful and intelligent VFD solutions. The 37kW GD100 model is specifically optimized for large irrigation systems and ensures high ROI with smart control, safety features, and long-lasting performance.

Available at SUNSOLAR – Pakistan’s Leading Solar Irrigation Solutions Provider

At SUNSOLAR, we supply original INVT VFDs with complete installation support, pump matching, and solar system design services nationwide.

Why Buy from SUNSOLAR?

✔ 100% Genuine INVT Solar VFDs
✔ Competitive Pricing & In-Stock Availability
✔ Technical Consultation & Design
✔ Pump Compatibility Matching
✔ Installation & Warranty Support

Order INVT GD100 37kW Solar VFD Today!

Get INVT GD100 37kW Solar VFD (Original) for large pump applications. MPPT, dual input, 50HP support. Available now at SUNSOLAR Pakistan.
