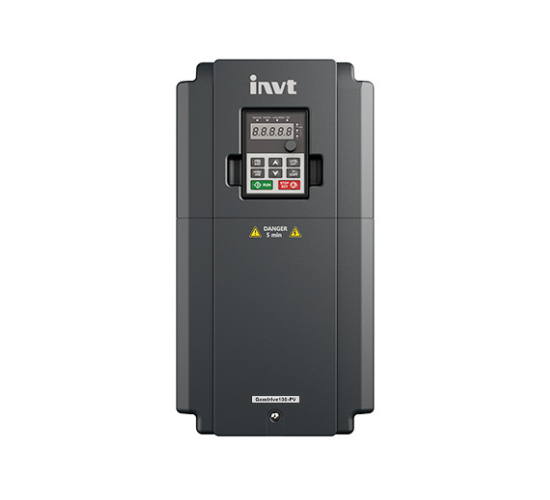

INVT GD100 22kW VFD Orignal

The INVT GD100 22kW MPPT Solar VFD (Original) is a high-capacity, intelligent solar drive designed to power 30HP 3-phase water pumps and motors directly from solar panels. With advanced MPPT technology, robust protection features, and easy installation, it’s ideal for agricultural, tube well, and industrial solar applications across Pakistan.

Specifications

  • Brand: INVT
  • Model: GD100-PV Series
  • Drive Type: Solar MPPT VFD
  • Rated Power: 22kW (30HP)
  • Input Voltage Range (DC): 350V – 800V
  • AC Output Voltage: 3-Phase, 0 – 380V Adjustable
  • Output Frequency: 0 – 400Hz
  • MPPT Tracking Efficiency: >99%
  • Motor Compatibility: Induction & PMSM (Permanent Magnet Synchronous Motor)
  • Cooling Method: Intelligent Fan Cooling
  • Display: LED Digital with Keypad
  • Communication Port: RS485 (Supports Modbus RTU)
  • Dual Input Support: Solar + Grid Optional
  • IP Rating: IP20
  • Operating Temperature: -10°C to +50°C
  • Dimensions: Approx. 580 × 330 × 250 mm
  • Weight: ~18 kg
  • Warranty: 1-Year Manufacturer Warranty

INVT GD100 22kW VFD – High-Performance Solar Drive for 30HP Water Pumps

The INVT GD100 22kW Solar VFD is engineered to provide smooth, reliable, and efficient operation of 30HP water pumps using solar energy. Equipped with MPPT solar input, this inverter maximizes power output by tracking the optimum voltage point from the PV array, ensuring your motor performs well even under varying sunlight conditions.

This drive supports both solar-only and solar + grid hybrid modes, allowing flexibility and 24/7 operation. It is ideal for running deep well submersible pumps, centrifugal pumps, and irrigation motors across rural, agricultural, and remote areas of Pakistan.

Why Choose INVT GD100 22kW MPPT Solar VFD?

INVT is a globally recognized brand in solar motor automation. The GD100 22kW is a top pick among Pakistani farmers and solar integrators for its durability, intelligence, and compatibility with local pump systems.

Available at SUNSOLAR – Trusted Solar Pumping Solutions Provider

SUNSOLAR offers original INVT GD100 22kW MPPT Solar Drives with pump compatibility matching, technical consultation, and nationwide installation services.

Why Buy from SUNSOLAR?

✔ 100% Genuine INVT Products
✔ Best Pricing with Warranty
✔ Pump + Drive Compatibility Support
✔ Smart Installation & Programming
✔ Fast Delivery Across Pakistan
✔ After-Sales & Technical Support

Order INVT GD100 22kW Solar VFD Today!

Buy INVT GD100 22kW Solar VFD (30HP) with MPPT tracking, smart protection, and grid backup. Ideal for irrigation & tube wells in Pakistan.
