₨550,000.00

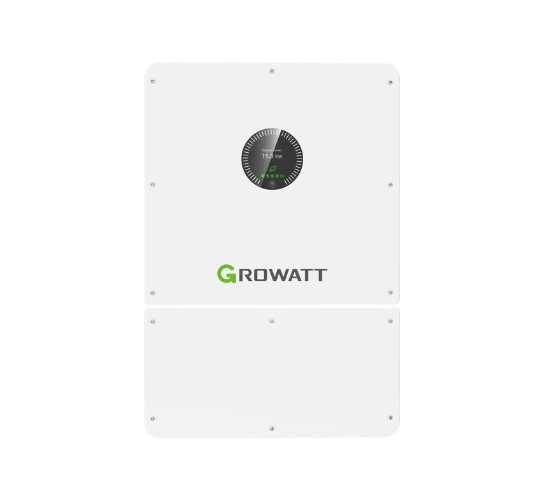

Growatt 10kW Three Phase Hybrid Inverter
Specifications
- Brand: Growatt
- Model: SPH10000TL3-BH-UP (or equivalent series)
- Inverter Type: Hybrid (On-Grid + Battery Storage)
- Rated AC Output Power: 10,000W (Three-Phase)
- Max DC Input Voltage: 1000V
- Start-Up Voltage: 160V
- MPPT Inputs: 2 Independent MPPTs
- Max PV Input Current per MPPT: 16A
- Max Efficiency: 98.4%
- European Efficiency: ~97.8%
- Battery Type Compatibility: Lithium-ion / Lead-Acid (48V Nominal)
- Battery Voltage Range: 150V – 800V (HV Battery Support)
- Max Battery Charge/Discharge Power: 10,000W
- AC Output Voltage: 400V, 3-Phase
- Frequency: 50Hz / 60Hz
- Communication Interfaces: RS485 / CAN / USB / WiFi (Optional LAN/4G Dongle)
- Cooling Method: Intelligent Fan Cooling
- Protection Rating: IP65 (Outdoor & Indoor Use)
- Operating Temperature: -25°C to +60°C
- Dimensions: Approx. 580 × 435 × 230 mm
- Weight: ~35 kg
- Warranty: 5 Years (Extendable to 10 Years)
Growatt 10kW Three Phase Hybrid Inverter – Powerful, Flexible & Future-Ready
The Growatt SPH10000TL3-BH-UP is a next-generation hybrid inverter designed for maximum energy efficiency and grid independence. It integrates solar PV, grid power, and battery storage into one intelligent system, enabling users to optimize self-consumption and store excess energy for later use.
With dual MPPTs, the inverter supports flexible PV string designs for optimal performance in varying conditions. It allows seamless transition between on-grid and backup modes, ensuring uninterrupted power during outages.
Built for long-term durability, the inverter is IP65-rated for outdoor use and features multiple safety protections including over-voltage, anti-islanding, and surge protection. With smart monitoring via the ShinePhone App or ShineServer, system performance can be tracked in real-time from anywhere.
Why Choose Growatt 10kW 3-Phase Hybrid Inverter?
Growatt is a global leader in hybrid inverter technology, offering high performance, advanced monitoring, and flexible battery options. This model is perfect for customers looking to combine solar generation with battery backup for commercial or residential use.
Available at SUNSOLAR – Pakistan’s Trusted Growatt Distributor
At SUNSOLAR, we supply authentic Growatt hybrid inverters with full installation, net metering setup, and battery compatibility support.
Why Buy from SUNSOLAR?
✔ 100% Original Growatt Inverters
✔ Competitive Market Pricing
✔ Expert Installation & System Design
✔ Net Metering Approved in Pakistan
✔ Dedicated After-Sales Support
Order Growatt 10kW Hybrid Inverter Today!
Buy Growatt 10kW 3-Phase Hybrid Inverter – 98.4% efficiency, IP65, dual MPPT, high voltage battery compatible. Perfect for grid + storage systems in Pakistan.
